[쿠버네티스] GitLab-ArgoCd CD 구축

by cbwstar 2024. 1. 16.
728x90
반응형

1. krew 이용한 플러그인 설치

ns : 네임스페이스를 변환해주는 플러그인

neat : yaml 추출시 불필요한 부분을 삭제하여 깔끔하게 볼 수 있는 플러그인

설치

kubectl krew install ns

kubectl krew install neat

root@master:~/argocd# kubectl krew install ns
Updated the local copy of plugin index.
Installing plugin: ns
Installed plugin: ns
\
 | Use this plugin:
 | 	kubectl ns
 | Documentation:
 | 	https://github.com/ahmetb/kubectx
 | Caveats:
 | \
 |  | If fzf is installed on your machine, you can interactively choose
 |  | between the entries using the arrow keys, or by fuzzy searching
 |  | as you type.
 | /
/
WARNING: You installed plugin "ns" from the krew-index plugin repository.
   These plugins are not audited for security by the Krew maintainers.
   Run them at your own risk.
root@master:~/argocd# kubectl krew install neat
Updated the local copy of plugin index.
Installing plugin: neat
Installed plugin: neat
\
 | Use this plugin:
 | 	kubectl neat
 | Documentation:
 | 	https://github.com/itaysk/kubectl-neat
/
WARNING: You installed plugin "neat" from the krew-index plugin repository.
   These plugins are not audited for security by the Krew maintainers.
   Run them at your own risk.
root@master:~/argocd#

2. k8s cluster에 Argo CD  배포

네임 스페이스 확인

kubectl get ns

NAME                   STATUS   AGE
argocd                 Active   7d2h
calico-apiserver       Active   10d
calico-system          Active   10d
default                Active   10d
jenkins                Active   7d4h
kube-node-lease        Active   10d
kube-public            Active   10d
kube-system            Active   10d
kubernetes-dashboard   Active   7d19h
tigera-operator        Active   10d

argocd 가 네임 스페이스에 없으면 생성

kubectl create namespace argocd

- argocd를 기본 네임스페이스로 변경

kubectl ns argocd

root@master:~/argocd# kubectl ns argocd
Context "kubernetes-admin@kubernetes" modified.
Active namespace is "argocd".

argocd 확인

kubectl get all -o wide

root@master:~/argocd# kubectl get all -o wide
NAME                                                   READY   STATUS        RESTARTS        AGE     IP             NODE    NOMINATED NODE   READINESS GATES
pod/argocd-application-controller-0                    1/1     Terminating   3 (4d19h ago)   5d23h   10.1.135.35    node3   <none>           <none>
pod/argocd-applicationset-controller-5f975ff5-hvhb7    1/1     Terminating   6 (4d19h ago)   7d2h    10.1.104.41    node2   <none>           <none>
pod/argocd-applicationset-controller-5f975ff5-pkgbg    1/1     Running       1 (68m ago)     20h     10.1.166.172   node1   <none>           <none>
pod/argocd-applicationset-controller-5f975ff5-zw7lb    0/1     Terminating   11 (21h ago)    22h     10.1.135.45    node3   <none>           <none>
pod/argocd-dex-server-5cb44cbfcd-jmxs8                 1/1     Terminating   1 (4d19h ago)   5d4h    10.1.104.40    node2   <none>           <none>
pod/argocd-dex-server-5cb44cbfcd-lwgmh                 1/1     Running       1 (68m ago)     20h     10.1.166.170   node1   <none>           <none>
pod/argocd-dex-server-5cb44cbfcd-q59zm                 1/1     Terminating   0               22h     10.1.135.42    node3   <none>           <none>
pod/argocd-notifications-controller-566465df76-dqskl   0/1     Terminating   17 (21h ago)    22h     10.1.135.40    node3   <none>           <none>
pod/argocd-notifications-controller-566465df76-fvkrb   1/1     Terminating   2 (4d19h ago)   5d4h    10.1.104.37    node2   <none>           <none>
pod/argocd-notifications-controller-566465df76-p2f8s   1/1     Running       1 (68m ago)     20h     10.1.166.178   node1   <none>           <none>
pod/argocd-redis-69d46564c7-48stl                      1/1     Running       1 (68m ago)     20h     10.1.166.169   node1   <none>           <none>
pod/argocd-redis-69d46564c7-dn4s7                      1/1     Terminating   0               22h     10.1.135.37    node3   <none>           <none>
pod/argocd-redis-69d46564c7-jbpbh                      1/1     Terminating   4 (4d19h ago)   7d2h    10.1.104.42    node2   <none>           <none>
pod/argocd-repo-server-6d5f959b8f-6xsch                1/1     Terminating   1 (4d19h ago)   5d4h    10.1.104.35    node2   <none>           <none>
pod/argocd-repo-server-6d5f959b8f-7lpf9                1/1     Running       1 (68m ago)     20h     10.1.166.171   node1   <none>           <none>
pod/argocd-repo-server-6d5f959b8f-m7z9k                0/1     Terminating   11 (21h ago)    22h     10.1.135.44    node3   <none>           <none>
pod/argocd-server-7b6bb89949-w2v2n                     1/1     Running       1 (68m ago)     20h     10.1.166.175   node1   <none>           <none>
pod/argocd-server-7b6bb89949-wzwmw                     1/1     Terminating   5 (4d19h ago)   7d2h    10.1.104.38    node2   <none>           <none>
pod/argocd-server-7b6bb89949-xf8sx                     0/1     Terminating   13 (21h ago)    22h     10.1.135.46    node3   <none>           <none>

NAME                                              TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE    SELECTOR
service/argocd-applicationset-controller          ClusterIP   10.110.173.77   <none>        7000/TCP,8080/TCP            7d2h   app.kubernetes.io/name=argocd-applicationset-controller
service/argocd-dex-server                         ClusterIP   10.111.104.44   <none>        5556/TCP,5557/TCP,5558/TCP   7d2h   app.kubernetes.io/name=argocd-dex-server
service/argocd-metrics                            ClusterIP   10.96.114.35    <none>        8082/TCP                     7d2h   app.kubernetes.io/name=argocd-application-controller
service/argocd-notifications-controller-metrics   ClusterIP   10.99.241.186   <none>        9001/TCP                     7d2h   app.kubernetes.io/name=argocd-notifications-controller
service/argocd-redis                              ClusterIP   10.96.165.2     <none>        6379/TCP                     7d2h   app.kubernetes.io/name=argocd-redis
service/argocd-repo-server                        ClusterIP   10.98.141.163   <none>        8081/TCP,8084/TCP            7d2h   app.kubernetes.io/name=argocd-repo-server
service/argocd-server                             NodePort    10.111.108.21   <none>        80:30316/TCP,443:31865/TCP   7d2h   app.kubernetes.io/name=argocd-server
service/argocd-server-metrics                     ClusterIP   10.97.122.15    <none>        8083/TCP                     7d2h   app.kubernetes.io/name=argocd-server

NAME                                               READY   UP-TO-DATE   AVAILABLE   AGE    CONTAINERS                         IMAGES                           SELECTOR
deployment.apps/argocd-applicationset-controller   0/1     1            0           7d2h   argocd-applicationset-controller   quay.io/argoproj/argocd:v2.9.3   app.kubernetes.io/name=argocd-applicationset-controller
deployment.apps/argocd-dex-server                  0/1     1            0           7d2h   dex                                ghcr.io/dexidp/dex:v2.37.0       app.kubernetes.io/name=argocd-dex-server
deployment.apps/argocd-notifications-controller    0/1     1            0           7d2h   argocd-notifications-controller    quay.io/argoproj/argocd:v2.9.3   app.kubernetes.io/name=argocd-notifications-controller
deployment.apps/argocd-redis                       0/1     1            0           7d2h   redis                              redis:7.0.11-alpine              app.kubernetes.io/name=argocd-redis
deployment.apps/argocd-repo-server                 0/1     1            0           7d2h   argocd-repo-server                 quay.io/argoproj/argocd:v2.9.3   app.kubernetes.io/name=argocd-repo-server
deployment.apps/argocd-server                      0/1     1            0           7d2h   argocd-server                      quay.io/argoproj/argocd:v2.9.3   app.kubernetes.io/name=argocd-server

NAME                                                         DESIRED   CURRENT   READY   AGE    CONTAINERS                         IMAGES                           SELECTOR
replicaset.apps/argocd-applicationset-controller-5f975ff5    1         1         0       7d2h   argocd-applicationset-controller   quay.io/argoproj/argocd:v2.9.3   app.kubernetes.io/name=argocd-applicationset-controller,pod-template-hash=5f975ff5
replicaset.apps/argocd-dex-server-5cb44cbfcd                 1         1         0       7d2h   dex                                ghcr.io/dexidp/dex:v2.37.0       app.kubernetes.io/name=argocd-dex-server,pod-template-hash=5cb44cbfcd
replicaset.apps/argocd-notifications-controller-566465df76   1         1         0       7d2h   argocd-notifications-controller    quay.io/argoproj/argocd:v2.9.3   app.kubernetes.io/name=argocd-notifications-controller,pod-template-hash=566465df76
replicaset.apps/argocd-redis-69d46564c7                      1         1         0       7d2h   redis                              redis:7.0.11-alpine              app.kubernetes.io/name=argocd-redis,pod-template-hash=69d46564c7
replicaset.apps/argocd-repo-server-6d5f959b8f                1         1         0       7d2h   argocd-repo-server                 quay.io/argoproj/argocd:v2.9.3   app.kubernetes.io/name=argocd-repo-server,pod-template-hash=6d5f959b8f
replicaset.apps/argocd-server-7b6bb89949                     1         1         0       7d2h   argocd-server                      quay.io/argoproj/argocd:v2.9.3   app.kubernetes.io/name=argocd-server,pod-template-hash=7b6bb89949

NAME                                             READY   AGE    CONTAINERS                      IMAGES
statefulset.apps/argocd-application-controller   0/1     7d2h   argocd-application-controller   quay.io/argoproj/argocd:v2.9.3

이렇게 서비스가 올라 오는지 확인

argocd-server 에 NodePort로 지정되어 있으면 외부에서 30316 포트로 접속할수 있습니다.

NodePort로 안되어 있으면 상세 정보를 yml형식의 파일로 추출한후에 type를 수정후 반영하여 적용합니다.

kubectl get svc argocd-server -o yaml | kubectl neat > argocd-server-svc.yml

root@master:~/argocd# ll
total 12
drwxr-xr-x  2 root root 4096  1월 16 13:07 ./
drwx------ 16 root root 4096  1월 16 09:13 ../
-rw-r--r--  1 root root  582  1월 16 13:07 argocd-server-svc.yml

vi argocd-server-svc.yml

apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: server
    app.kubernetes.io/name: argocd-server
    app.kubernetes.io/part-of: argocd
  name: argocd-server
  namespace: argocd
spec:
  clusterIP: 10.111.108.21
  clusterIPs:
  - 10.111.108.21
  internalTrafficPolicy: Cluster
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - name: http
    nodePort: 30316
    port: 80
    targetPort: 8080
  - name: https
    nodePort: 31865
    port: 443
    targetPort: 8080
  selector:
    app.kubernetes.io/name: argocd-server
  type: NodePort

type : NodePort로 변경후 적용

kubectl apply -f argocd-server-svc.yml

적용확인

root@master:~/argocd# kubectl get service -o wide
NAME                                      TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                      AGE    SELECTOR
argocd-applicationset-controller          ClusterIP   10.110.173.77   <none>        7000/TCP,8080/TCP            7d2h   app.kubernetes.io/name=argocd-applicationset-controller
argocd-dex-server                         ClusterIP   10.111.104.44   <none>        5556/TCP,5557/TCP,5558/TCP   7d2h   app.kubernetes.io/name=argocd-dex-server
argocd-metrics                            ClusterIP   10.96.114.35    <none>        8082/TCP                     7d2h   app.kubernetes.io/name=argocd-application-controller
argocd-notifications-controller-metrics   ClusterIP   10.99.241.186   <none>        9001/TCP                     7d2h   app.kubernetes.io/name=argocd-notifications-controller
argocd-redis                              ClusterIP   10.96.165.2     <none>        6379/TCP                     7d2h   app.kubernetes.io/name=argocd-redis
argocd-repo-server                        ClusterIP   10.98.141.163   <none>        8081/TCP,8084/TCP            7d2h   app.kubernetes.io/name=argocd-repo-server
argocd-server                             NodePort    10.111.108.21   <none>        80:30316/TCP,443:31865/TCP   7d2h   app.kubernetes.io/name=argocd-server
argocd-server-metrics                     ClusterIP   10.97.122.15    <none>        8083/TCP                     7d2h   app.kubernetes.io/name=argocd-server



2. argocd namespace에 프라이빗서버 접속 설정

kubectl create secret generic regcred --from-file=.dockerconfigjson=/root/.docker/config.json --type=kubernetes.io/dockerconfigjson

3. 스프링부트 Jenkinsfile 설정

pipeline {
    agent any
    // any, none, label, node, docker, dockerfile, kubernetes
    tools {
      gradle 'gradle8.5'
    }
 environment {
      dockerHubRegistry = 'invako.com/pipelinetest/pipe' /* URL Harbor 저장소 push 테스트 */
      /* dockerHubRegistryCredential = '{Credential ID}'*/
  }
  stages {
    stage('Checkout Application Git Branch') {
        steps {
            git credentialsId: 'gitlab_token',
                url: 'https://invako.kro.kr:8090/cbw/piplinetest.git', /* URL변경에 따른 수정 필요 */
                branch: 'main'
        }
        post {
                failure {
                  echo 'Repository clone failure !'
                }
                success {
                  echo 'Repository clone success !'
                }
        }
    }


    stage('gardle Jar Build') {
            steps {
                sh 'chmod +x ./gradlew'
                sh './gradlew bootjar'
            }
            post {
                    failure {
                      echo 'Gradle jar build failure !'
                    }
                    success {
                      echo 'Gradle jar build success !'
                    }
            }

    }

    stage('Docker Image Build') {
            steps {
                sh "cp ./build/libs/piplinetest-0.0.1-SNAPSHOT.jar ./pipelinetest.jar"
                sh "docker build . -t ${dockerHubRegistry}:${currentBuild.number}"
                sh "docker build . -t ${dockerHubRegistry}:latest"
            }
            post {
                    failure {
                      echo 'Docker image build failure !'
                    }
                    success {
                      echo 'Docker image build success !'
                    }
            }
    }


    stage('Docker Image Push') {
            steps {
                      sh "echo 도커허브비밀번호 | docker login invako.com -u admin -p Harbor12345"
                      sh "docker push ${dockerHubRegistry}:${currentBuild.number}"
                      sh "docker push ${dockerHubRegistry}:latest"
                      sleep 10 /* Wait uploading */

            }
            post {
                    failure {
                      echo 'Docker Image Push failure !'
                      sh "docker rmi ${dockerHubRegistry}:${currentBuild.number}"
                      sh "docker rmi ${dockerHubRegistry}:latest"
                    }
                    success {
                      echo 'Docker image push success !'
                      sh "docker rmi ${dockerHubRegistry}:${currentBuild.number}"
                      sh "docker rmi ${dockerHubRegistry}:latest"
                    }
            }
    }

    stage('K8S Manifest Update') {
        steps {
            git credentialsId: 'gitlab_token',
                url: 'https://invako.kro.kr:8090/cbw/manifest.git',
                branch: 'main'
            sh "git config --global user.email 'cbwstar@gmail.com'"
            sh "git config --global user.name 'manager'"
            sh "sed -i 's/pipe:.*\$/pipe:${currentBuild.number}/g' pipelineapp_deployment.yaml"
            sh "git add pipelineapp_deployment.yaml"
            sh "git commit -m '[UPDATE] pipelineapp ${currentBuild.number} image versioning'"
            sh "git remote set-url origin https://invako.kro.kr:8090/cbw/manifest.git"
            sh "git push -u origin main"
       /*
            sshagent (credentials: ['GitLab_SSH_Key']) {
                sh "git remote set-url origin git@git.kbotest.shop:kbo/manifest.git"
                sh "git push -u origin main"
            }
            */
        }
        post {
                failure {
                  echo 'K8S Manifest Update failure !@'
                }
                success {
                  echo 'K8S Manifest Update success !!'
                }
        }
    }

  }
}

4. pipelineapp_deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: pipelineapp-deploy
spec:
  replicas: 2
  selector:
    matchLabels:
      type: pipeline
      version: v1
  template:
    metadata:
      labels:
        type: pipeline
        version: v1
    spec:
      containers:
      - name: pipelineapp-01
        image: invako.com/pipelinetest/pipe:18
        ports:
        - containerPort: 8080
      imagePullSecrets:                #프라이빗 서버 접속정보 입력
        - name: regcred

5. pipleneapp_service.yaml

apiVersion: v1
kind: Service
metadata:
  name: pipelineapp-service
spec:
  selector:
    type: pipeline
  ports:
    - port: 8080
      targetPort: 8080
      nodePort: 30050
  type: NodePort

6. ArgoCD 웹페이지 로그인

7. GitLab-ArgoCD 연동 설정

Settings -> Repositories

CONNECT REPO 클릭

8. Application 등록

    Application -> NEW APP 클릭

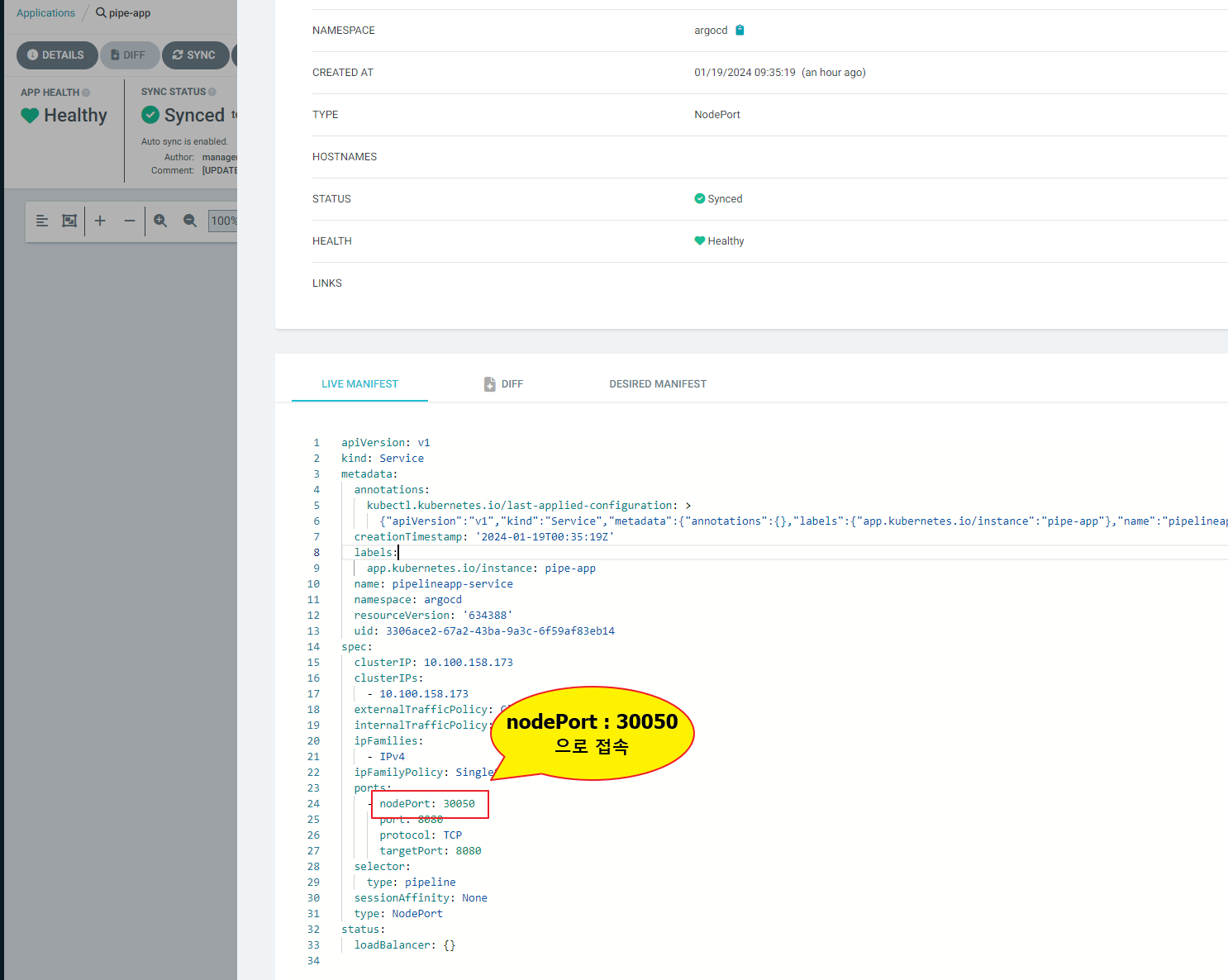

배포 확인



/* 수동 배포 테스트가 이상 없으면 자동 배포로 변경 설정 */

DETAILS -> SYNC POLICE -> AUTOMATED 변경

스프링 부트에서 소스 수정후 커밋하면 젠킨스에서 빌드가 이루어 지고  ArgoCD에서 자동 배포까지 완료 되는지 확인
